Series 40 Standard Leak Test Bench

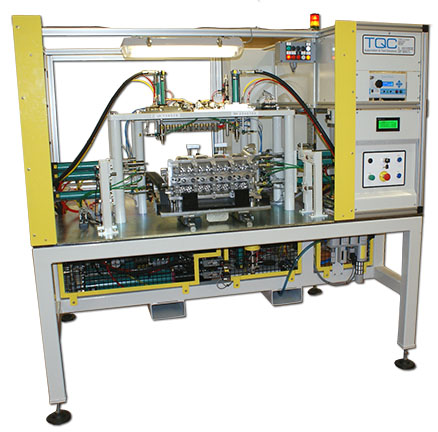

TQC have developed a series of standard leak test benches. The Series 40 bench is a low cost, standard leak testing bench with integral plc control, capable of housing any Leak Test Instrument.

A Series 40 standard leak test bench can combine automatic assembly with leak testing operations. This allows for compact, space and time-efficient solutions to be provided for higher throughput production.

Typical applications when combining operations into a single machine include –

  • A series of different leak tests carried out on different cavities at varying test pressure and leak limits
  • A press process or ball insertion followed by a leak testing and marking of the tested part
  • A screwing or glueing operation following by leak testing

Series 40 Standard Leak Test Bench Units Incorporate:

  • Standard aluminium extrusion bench or fabricated and welding box section frame
  • Universal fixture area with option front load/unload position and shuttle to test area
  • Light guard, sliding or self guarding
  • Fully automatic sealing fixture
  • PLC control system
  • Adjustable feet and Forklift Truck access or castors for more flexible location
  • Built in Leak Test Instrument
  • Standard operator interface panel
  • Suitable for medium to high volume applications

Variants of the Series 40 Series include:

Twin Station – To increase throughput, a twin station machine is available allowing a single operator to work alternately between the two fixtures, or two operators working independently on each fixture.

Interchangeable Fixturing – To allow multiple parts to be tested in a single leak test machine interchangeable fixtures are supplied each complete with fully automatic sealing mechanisms

The Series 40 leak test solutions can be configured for either over-pressure, vacuum or dosing applications.

To find out more about how we can help you with your leak testing requirements:

We build all machines in-house, applying our extensive experience in specialised test and automated handling machines to the engineering projects we undertake. We offer customer support, backup and service call-out for all projects, whatever the size.

Get in touch with us to discuss your requirements and we will be happy to offer our professional advice and visit you at your site.
